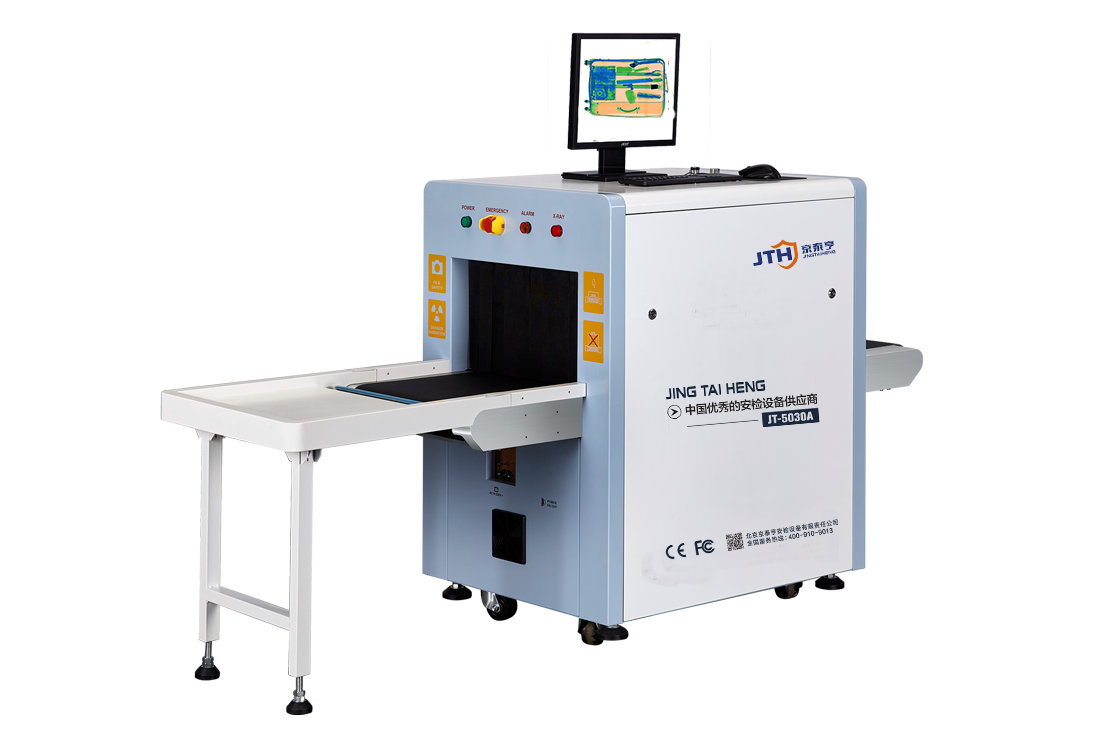

X-ray Baggage Scanner        Model: JT-5030A

------ Popular economic Version

The JT-5030A easily accommodates the inspection of hand baggage and parcels.

General Specification

●  Tunnel Size: 500(W)*300(H)mm

●  Conveyor Speed: 0.22m/s

●  Conveyor Max Load: 150kg

●  Dose per Inspection: <1.5 μGy/h

●  Resolution: <0.0787mm Metal Wire

●  Penetration: 17mm Steel

●  Film Safety: Guarantee ISO1600 Film

●  X-ray Leakage: <0.25 μGy/h (at a distance of 5cm From external housing)

X-ray Generator

● Generate direct: Upward

● Generate angle: 60 degree

● Anode Voltage: 80Kv

●Anode power: 0.4 to 0.5mA

● Cooling / Duty Cycle: Oil Cooling /100%
Image System

●  X-ray Sensor: L-Shaped Photodiode Array(monoenergetic) , 12bit Deep

●  Monitor: High Resolution Color, LCD Accord, 17 inch

●  Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

●  Image Grey Level: 4096

Image Max Resolution: 1024 * 1280 pixel

●  Image Processing: 24bit for processing real time

●  Image storage: Storage 60000 pictures in real time

●  Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation

Installation Data

●  Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)

●  Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)

●  Operation Power: 220VAC(±10%)50±3Hz

●  Power Consumption: 1.0 KW (max), 0.3KW(working)

●  Noise: <65db
