Beijing Jingtaiheng Security Inspection Equipment Co., Ltd.

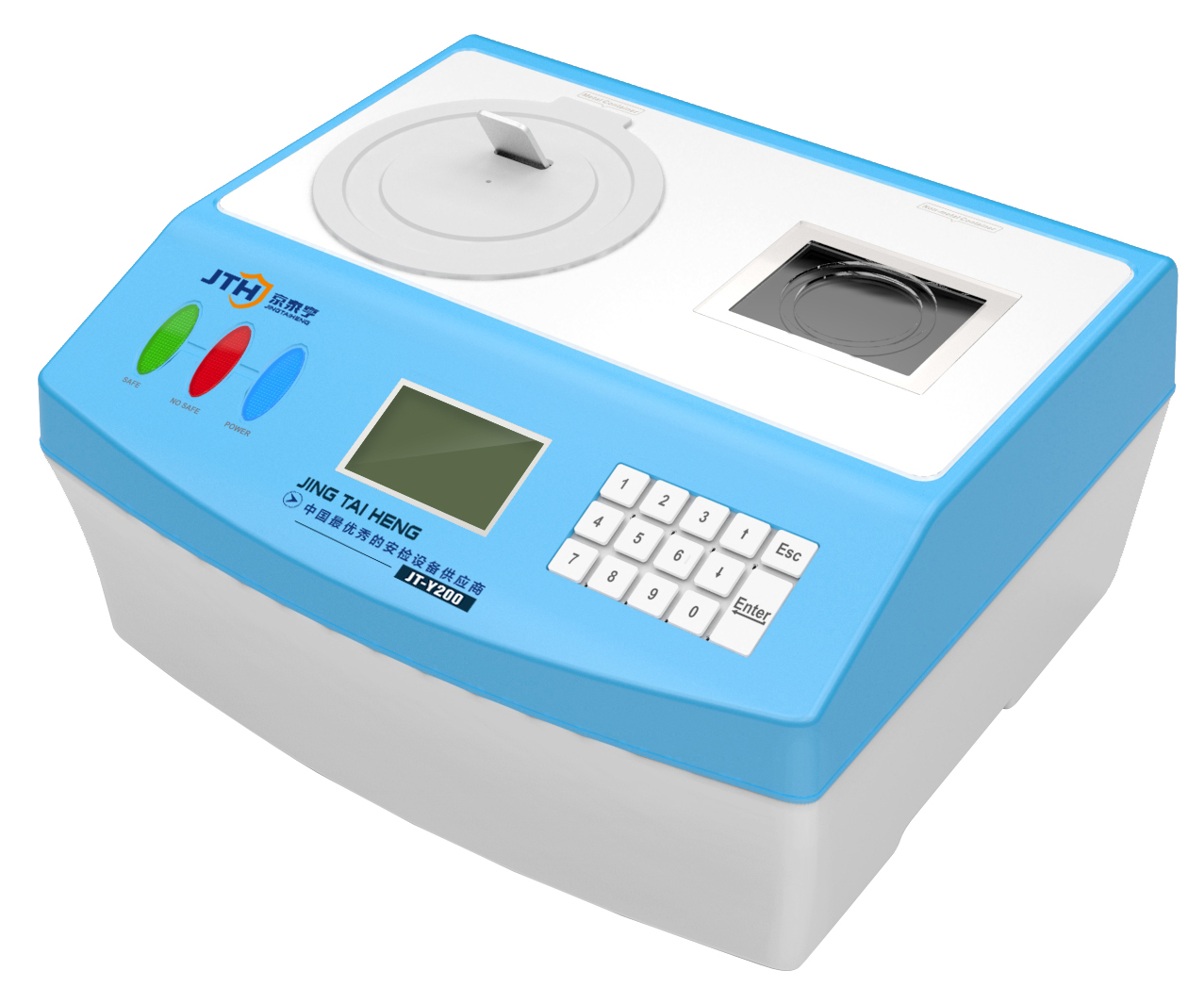

Liquid Scanner -Model: JT-Y200

★ Identify chemical composition of liquids, which is sealed in bottle or can.

★ Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.

★ No radiation, harmless to people and test sample - Ultra-wideband pulse microwave reflection method & the thermal conductivity technology

Technical specification

Limited material of bottle / can	Iron, aluminum, plastic, glass, porcelain, china, pottery.
Identify dangerous liquid	More than 30 sorts: Gasoline, kerosene, diesel oil , hydrochloric acid , sulfuric acid , nitric acid , sodium hydroxide , potassium hydroxide , isopropyl ether , petroleum ether, propionaldehyde, benzene, carbon disulfide, hexane, isopropanol, nitromethane, diethylamine , tris the trihalomethanes , ethylene glycol, xylene and other flammable, corrosive liquids
Effective scan distance	Metal container: 30mm from bottom Other container: 60mm from bottom
Alarm for dangerous liquid	Red LED alarm light & long beep
Single for safe liquid	Green LED light & short beep
Power on time	2 seconds
Identify time	Metal container: within 8 seconds Other container: within 1 second
Out size	*460365245mm (LWH)*
Weight	12KG
Temperature of container	5-35℃
Storage temperature / humidity	-40℃ to 60℃ / 5% to 95% humidity
Working temperature / humidity	15℃ to 35℃ / 5% to 95% humidity
Power Voltage/ frequency	AC180-240V(50/60Hz)
Power consumption	10W

Certification: Test Report from Inspection Center of State Security
